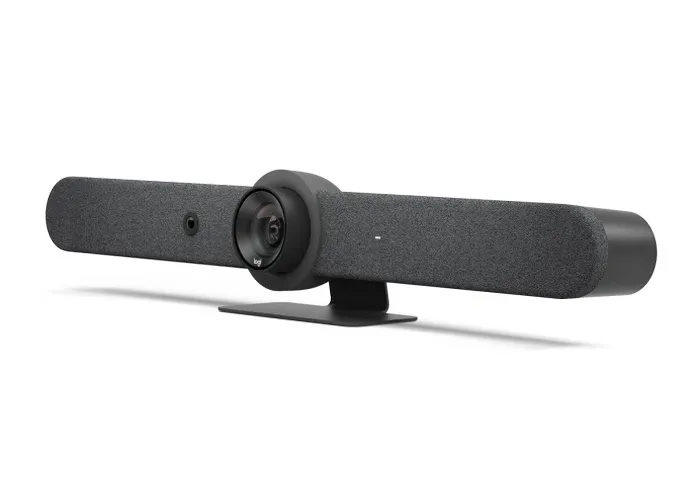

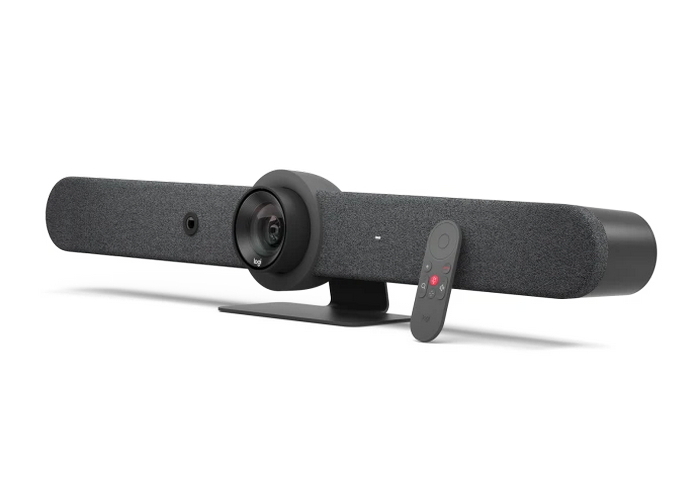

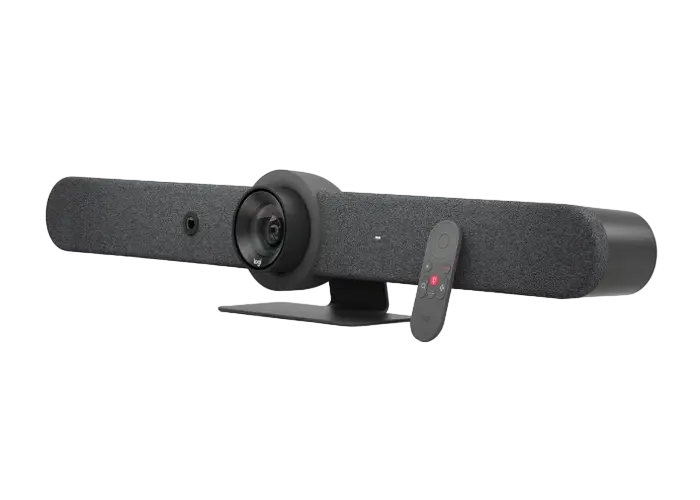

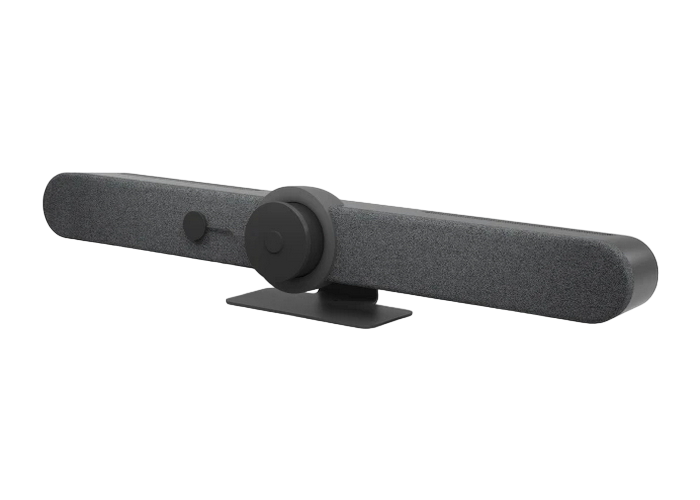

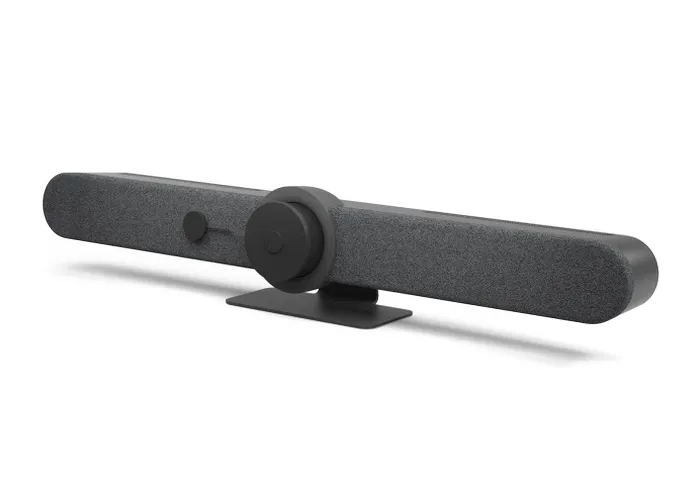

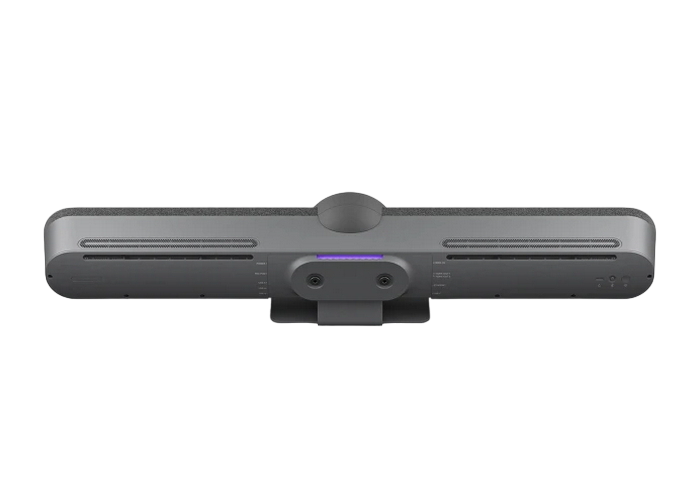

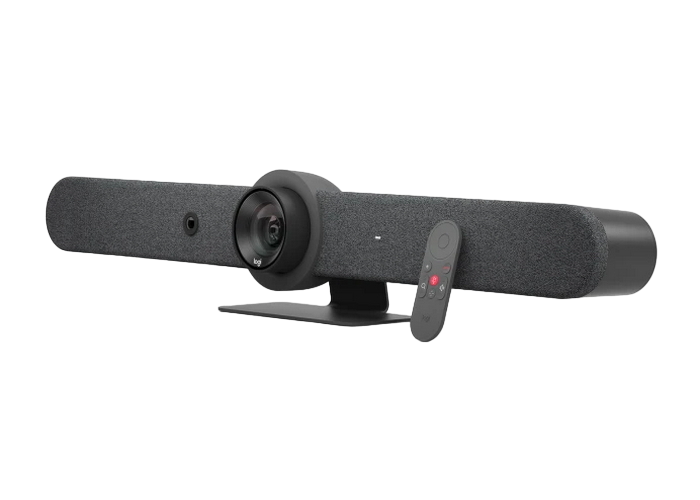

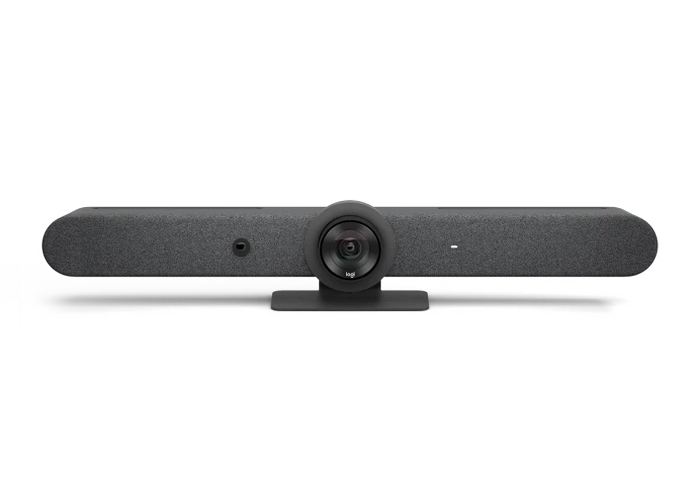

. Dimensions Height 164 mm Width 910 mm Depth 130.5 mm Lens Depth 28.8 mm Weight 7.08 kg Certifications & Compatibility Certifications Microsoft Teams Rooms on Android™ 5For medium sized rooms Microsoft Teams Rooms on Windows 6For medium sized rooms Zoom Room™ Tencent Meeting Rooms Appliance Mode Microsoft Teams Rooms on Android Zoom Rooms Google Meet GoToRoom® Pexip Room RingCentral Rooms™ Tencent Meeting Rooms GENERAL SPECIFICATIONS Built-in Components 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform Enclosure All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference Device Management Logitech Sync Displays Supported 2 (up to 1080p) Display Resolution Up to 1080p Network Protocol Support IPv4, IPv6 Proxy Support IP based Proxy, FQDN based Proxy, Proxy using PAC file Camera Resolution 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps Pan Motorized ±25° Tilt Motorized ±15° Zoom 15X HD zoom (5X optical and 3X digital) Diagonal Field of View 90° Horizontal Field of View 82.1° Vertical Field of View 52.2° Total Room Coverage (field of view + pan and tilt) 132.1° Horizontal x 82.2° Vertical Speakers Drivers 2x 70 mm Sensitivity 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter Rated Power 8W THD 1kHz <2% at 1W Speaker Sampling Rate 48 kHz Impedance 4 Ohms Microphones Frequency Response 90Hz – 16kHz Sensitivity >-36dBFS +/-1 dB @ 1Pa Microphone data rate output 48KHz Pickup Range 7 m Beamforming Elements Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams Audio processing AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) Noise suppression AI based de-noising algorithm Add-on Mics Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms RightSense™ Technologies RightLight Renders natural skin tones for each participant RightSight Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room RightSound Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo Grid View Detect and frame all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview Interfaces HDMI Out 2 (up to 1080p) HDMI In 1 USB 3x Type A, 1x Type C Network 10/100/1G Ethernet WiFi 802.11a/b/g/n/ac External Mic Input Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) Remote Control Bluetooth® Low Energy Power & Cables Power supply Auto-sensing Operating Voltage/Power 100-240V, 19V, 4.74A Power Supply Dimensions 127 mm x 51 mm x 30 mm DC Cable 1.5 m AC Cable 1 m HDMI 1.4 Cable 2 m USB A to USB C 3.0 Cable 2.2 m Security Full Disk Encryption AES-128 Data Encryption Symmetric Keys, PKI Device Identity Protected by device attestation Device Access Authenticated using API Key Protection Arm TrustZone, RPMP Part Number Graphite 960-001311 White 960-001323
