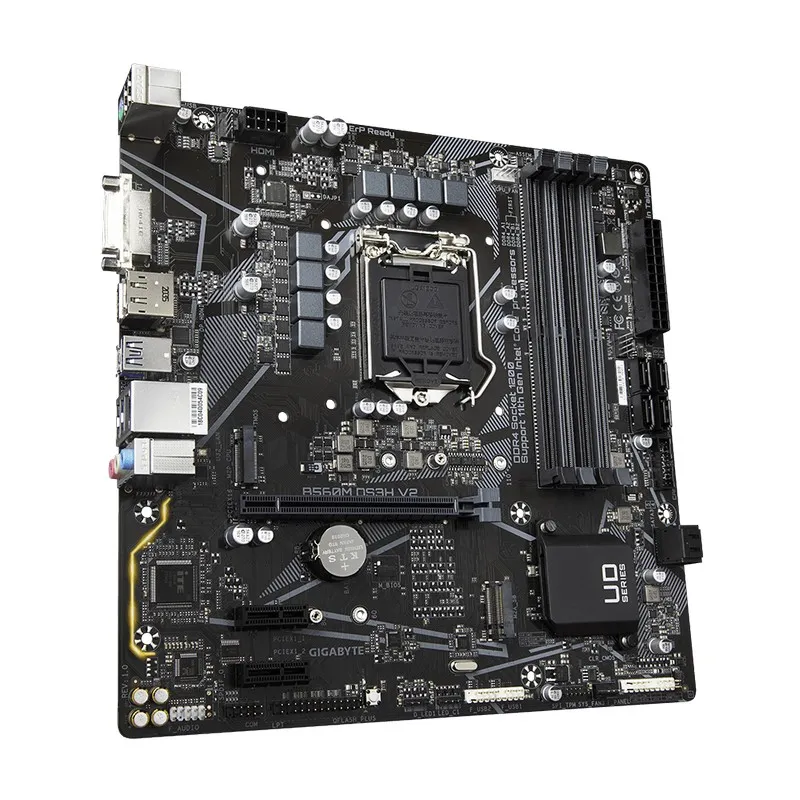

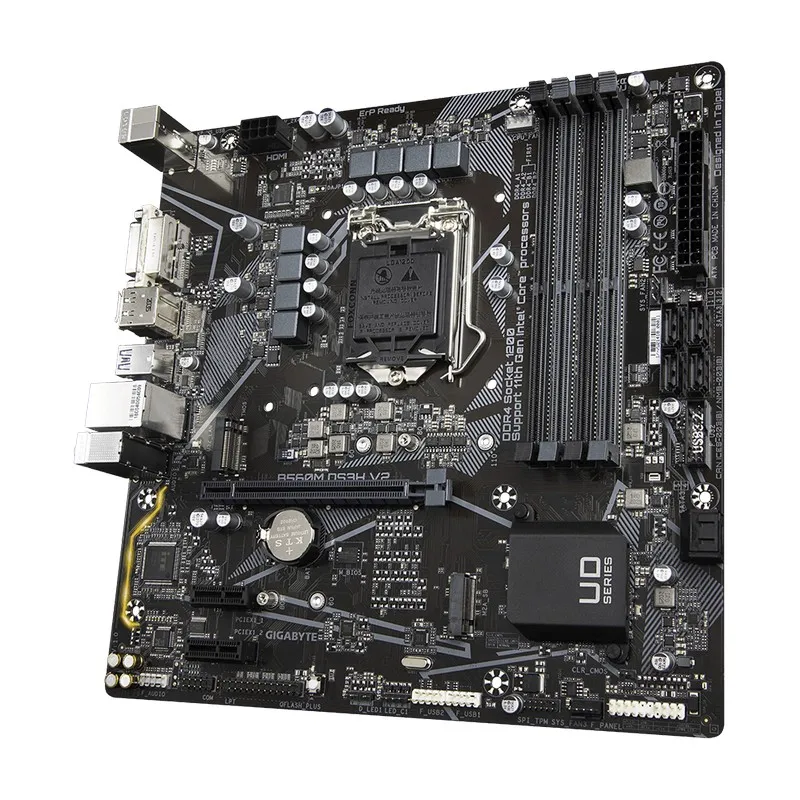

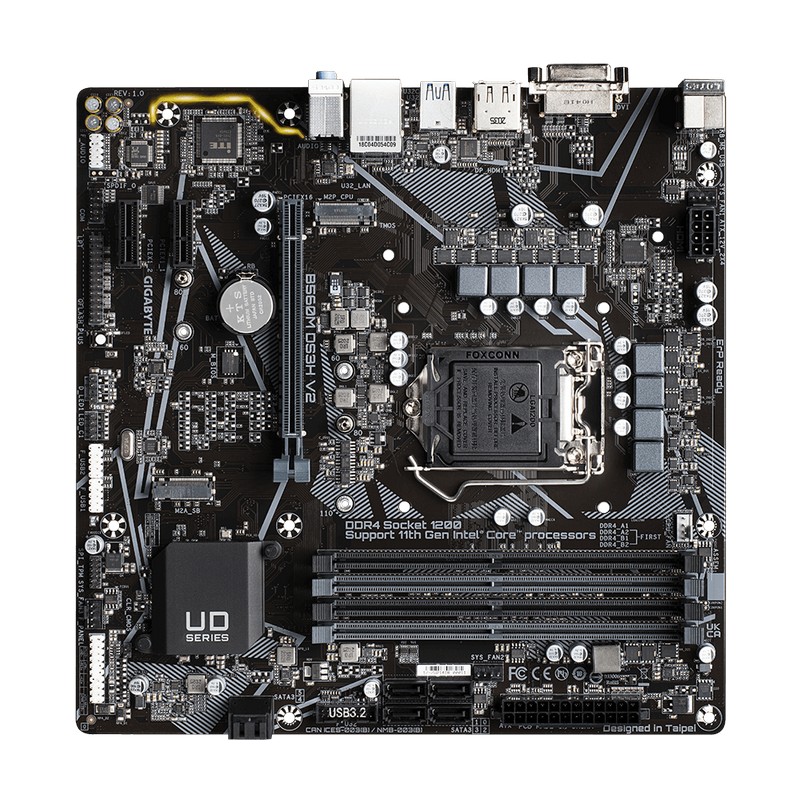

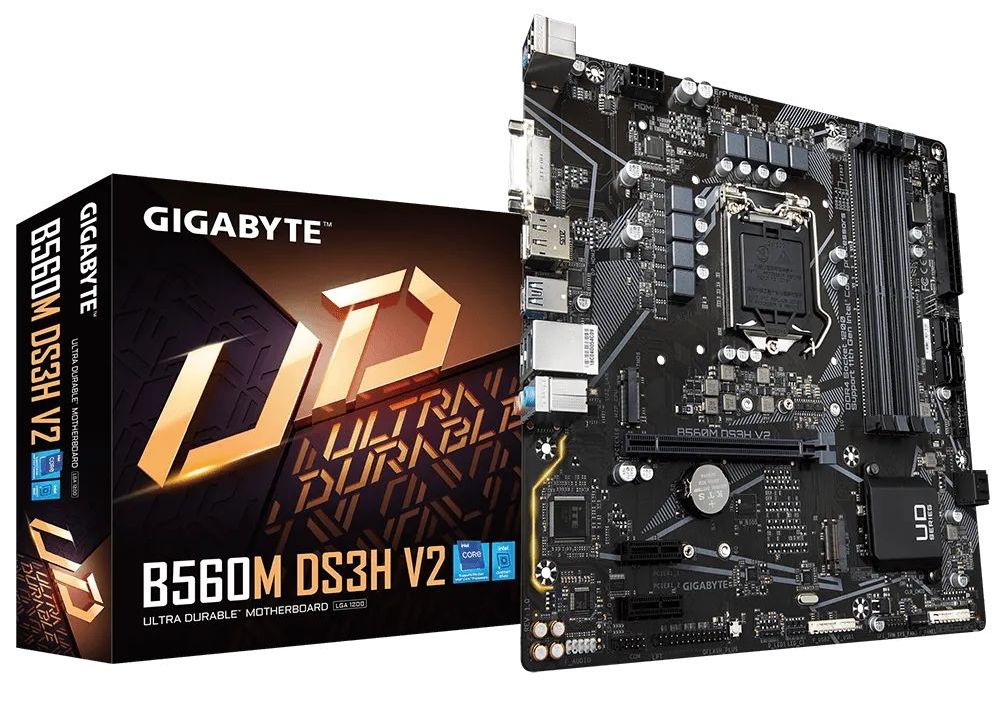

Материнская плата Gigabyte B560M DS3H V2, LGA1200, Intel B560, Micro-ATX

Name: Материнская плата Gigabyte B560M DS3H V2, LGA1200, Intel B560, Micro-ATX
Brand: Gigabyte
SKU: U135156
Price: 2129 MDL
Availability: BackOrder

Нет в наличии

2 129 лей

Купить в 1 клик

Характеристики

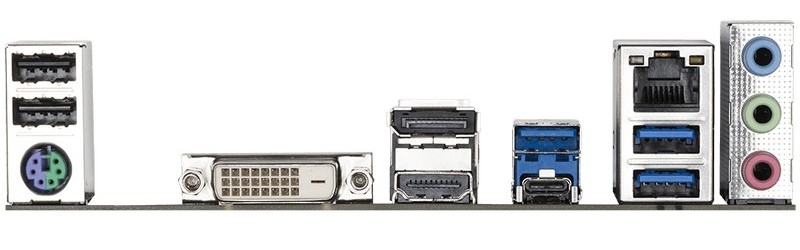

USB Type-C: 1 x
HDMI: 1x HDMI 1.4
DVI: 1x DVI-D
DisplayPort: 1x DP 1.2
Audio Jacks: HD Audio Jacks: Line in / Line Out / Microphone
PC Component Type: Материнская плата
Motherboard Form-Factor: Micro-ATX
USB 3.x Type-A: 3x USB 3.2
USB 2.0 Type-A: 2x
Memory Type: DDR4 SDRAM
Memory Speed: 5333 МГц
Memory Slots QTY: 4x DIMM
Total RAM Maximum Size: 128 GB
Chipset: Intel B560
Audio Chipset: High Definition (HD) Audio
SATA Ports: 6x SATA 6Gb/s
Socket: LGA1200
Ethernet (LAN) controller #1: Gigabit Ethernet (Realtek RTL8118)
Slot support M2 #1: M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2: SATA3 or PCIe Gen3 x4 (32 Gb/s)
USB 2.0 Headers: 2x USB 2.0 (Support 3 USB Ports)
USB 3.x Headers: 1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)

Наличие, размеры и характеристики могут отличаться от реальных. Мы рекомендуем вам проверить точные детали перед покупкой.

Описание товара

// CPU - 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors - 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* Chipset Intel® B560 Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for up to 3 displays at the same time Audio Realtek® Audio CODEC LAN Realtek® GbE LAN chip (1000/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.) Storage Interface 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB headers
