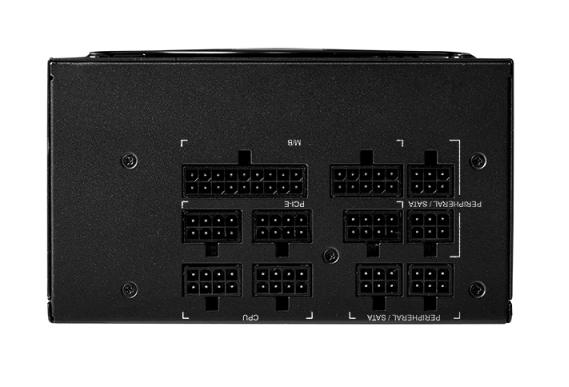

. TECHNICAL DATA Model POLARIS 1050W Article no. PPS-1050FC EAN code 753263077363 Weight (without/with package) 2.6kg / 3.4kg AC Input 100-240V / 15A Frequency 50 - 60Hz +5V 22A +3,3V 22A +5V & +3,3V combined 120W +12V1 87.5A +12V2 - +12V1, +12V2 combined 1050W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 3.0A / 15W Maximum Power 1050W Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 2 8 PIN PCIe (6+2) 6 SATA 12 MOLEX 4 Cable length (mm) 20+4 PIN ATX 650 8 PIN EPS (4+4) 2 x 650 8 PIN PCIe (6+2) 3 x 600/100 SATA 3 x 550/100/100/100 MOLEX/FLOPPY 550/100/100/100 Features ATX12V Version ATX 12V 2.3 Efficiency 80+Gold Dimension (DxWxH) 160 mm x 150 mm x 86 mm PFC Active PFC Fan 140mm FDB fan Security AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
