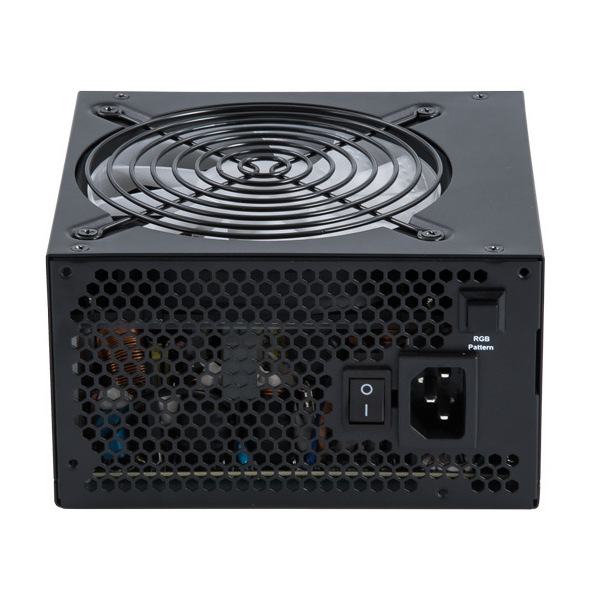

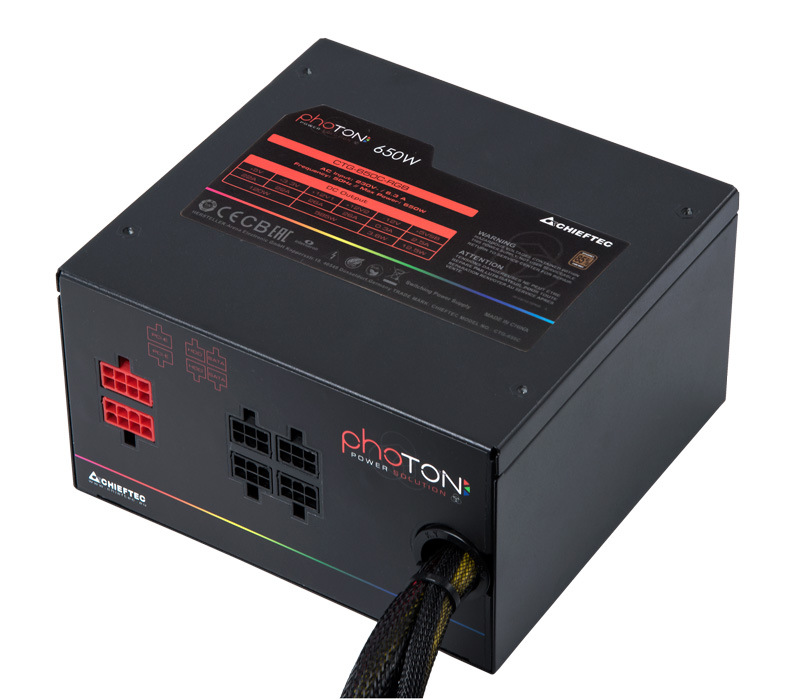

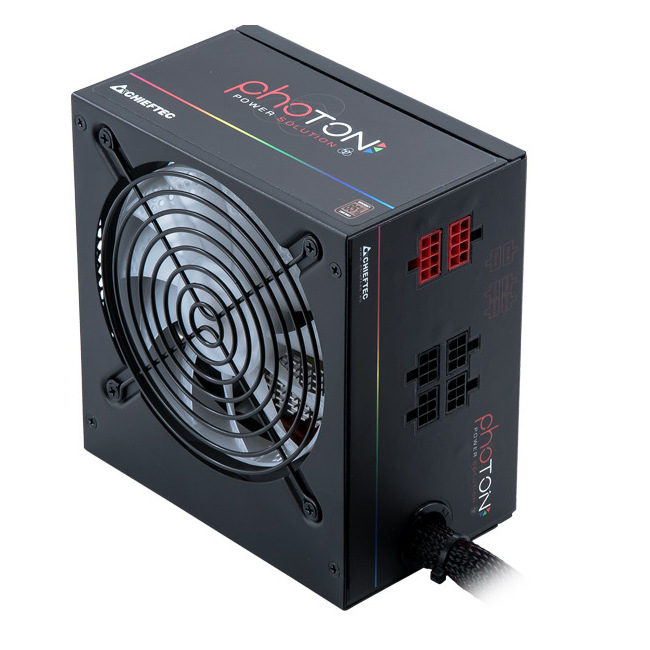

. Performance Model Photon 650W Article no. CTG-650C-RGB EAN code 753263075918 Weight (without/with package) 2,14 kg / 2,54 kg AC Input 230V / 6,3A Frequency 50Hz +5V 22A +3,3V 22A +5V & +3,3V combined 120W +12V 1 26A +12V 2 26A +12V 1 & +12V 2 combined 585W P.F. >0,9 -12V 0,3A / 3,6W +5VsB 2,5A / 12,5W Maximum Power 650W Connectors 24PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 4 SATA 6 MOLEX 4 FLOPPY 2 +5V RGB LED 1 Cable length 24PIN ATX 550 8 PIN EPS (4+4) 600 8 PIN PCIe (6+2) 2x 550/150 SATA 2x 450/150/150 MOLEX 2x 450/150/150 FLOPPY Molex +5V RGB LED 600/100 Features Specification ATX 12V 2.3 Form factor PS II Efficiency >85% Lightning modes 17x dynamic modes integrated Dimension (DxWxH) 140 mm x 150 mm x 87 mm PFC Active PFC (0,9) (only 230V) Fan 120mm silent RGB Rainbow fan Security UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) Warranty 24 Months
