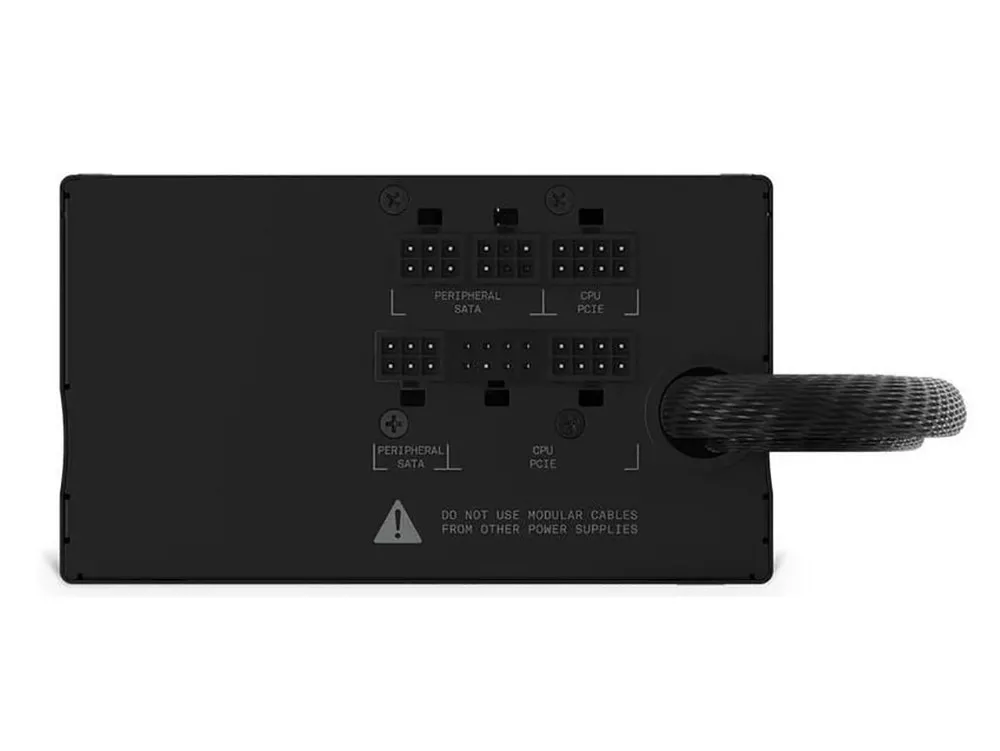

. KEY SPECS Dimensions W 150 x L 140 x H 86 (mm) Material(s) Steel, PCB and plastic Compliance Standard ATX12V v2.4 / EPS12V v2.92 AC Input Rating 10A/115V；5A/230V 47Hz ~ 63Hz DC OUTPUT RATING Voltage +3.3V / +5V / +5VSB /+12V / -12V Max Load 20A / 20A / 2.5A / 54A / 0.3A Voltage Regulation ±5% / ±5% / ±5% / ±5% / ±10% Ripple & Noise < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p Output Power (watt) 110 / 110 / 12.5 / 648 / 3.6 Total 650 FAN SPECS Dimensions 120 x 120 x 25 (mm) Speed 2400 ±10% RPM Airflow 72.90 CFM Noise <44 dBA Bearing FDB (Fluid Dynamic Bearing) ENERGY EFFICIENCY Rating 80 Plus Bronze 10% loading 82% 20% loading 83% 50% loading 87% 100% loading 83% OPERATION PF Correction Active@0.96 MTBF 100,000 hours Operation Temperature 0 to 40°C OUTPUT CONNECTOR(S) 24-pin ATX Power 1 4+4-pin CPU power 2 6+2-pin PCIe power 4 SATA Power 6 Peripherals 3 GENERAL Regulations & Certifications (EMC & Safety)  CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / Hazardous Materials RoHS & China RoHS
