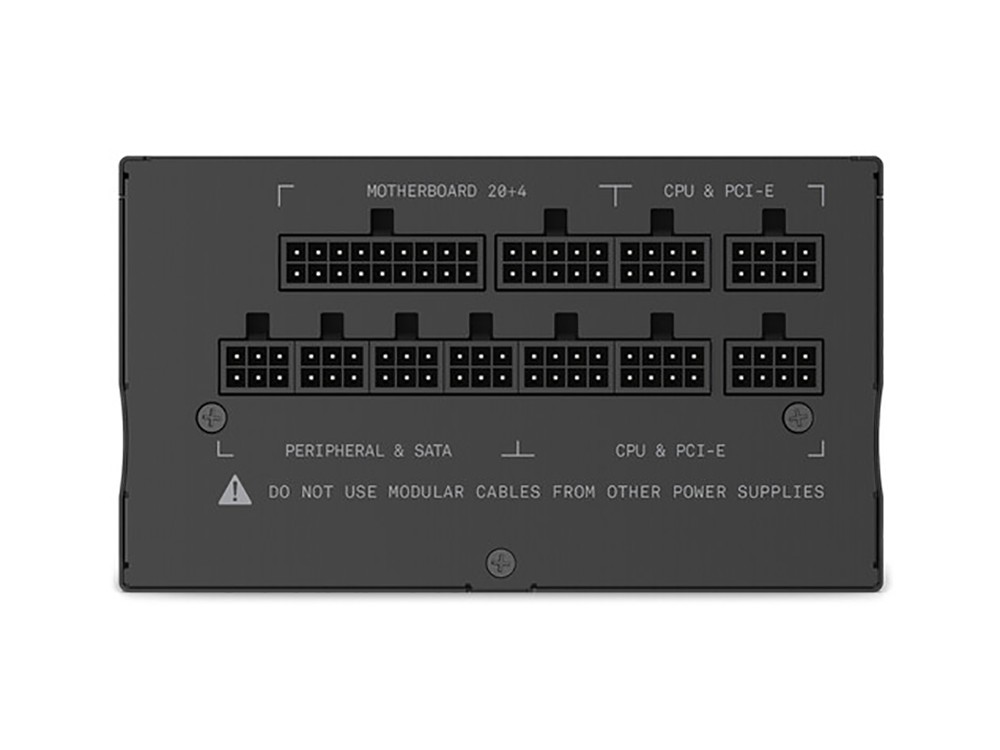

. OUTPUT CONNECTORS 24-pin ATX power 1 4+4-pin CPU power 2 6+2-pin PCIe power 6 SATA power 6 Peripherals 6 CABLE SPECS 24-pin ATX power 600 mm, Nylon sleeving 4+4-pin CPU power 700 mm, Nylon sleeving 6+2-pin PCIe power 650 + 150 mm, Nylon sleeving SATA power 500 + 150 mm Peripherals 500 + 150 mm AC INPUT RATING 100 - 240Vac 10A-5A 50Hz-60Hz DC OUTPUT RATING +3.3V and +5V 22A (120W) +12V 62.5A (750W) -12V 0.3A (3.6W) 5Vsb 3A (15W) Total 750W OPERATION PF Correction Active @0.96 MTBF 100,000 hours Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) ENERGY EFFICIENCY Rating 80 Plus Gold 20% loading 87% @115Vac 50% loading 90.5% @115Vac 100% loading 87.5% @115Vac FAN SPECS Dimensions 135 x 135 x 25 mm Speed 0-2300 ± 10% RPM Airflow 93.02 CFM (Tpy.) Noise 44.5 dBA max Bearing Fluid Dynamic Bearing (FDB) GENERAL Dimensions 150 x 150 x 86 mm Material(s) Steel, PCB and plastic Compliance Standard ATX12V v2.52 / EPS12V v2.92 Regulation & Certification cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA Model Number PA-7G1BB
