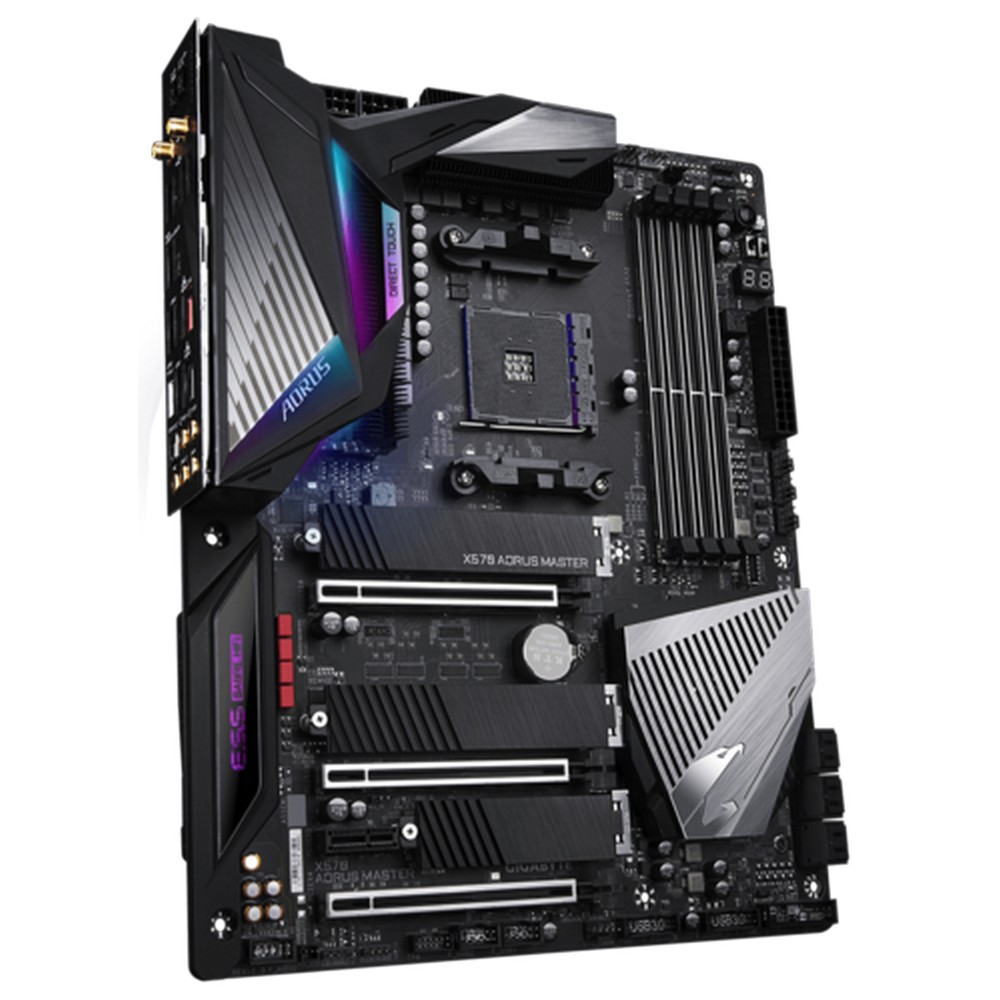

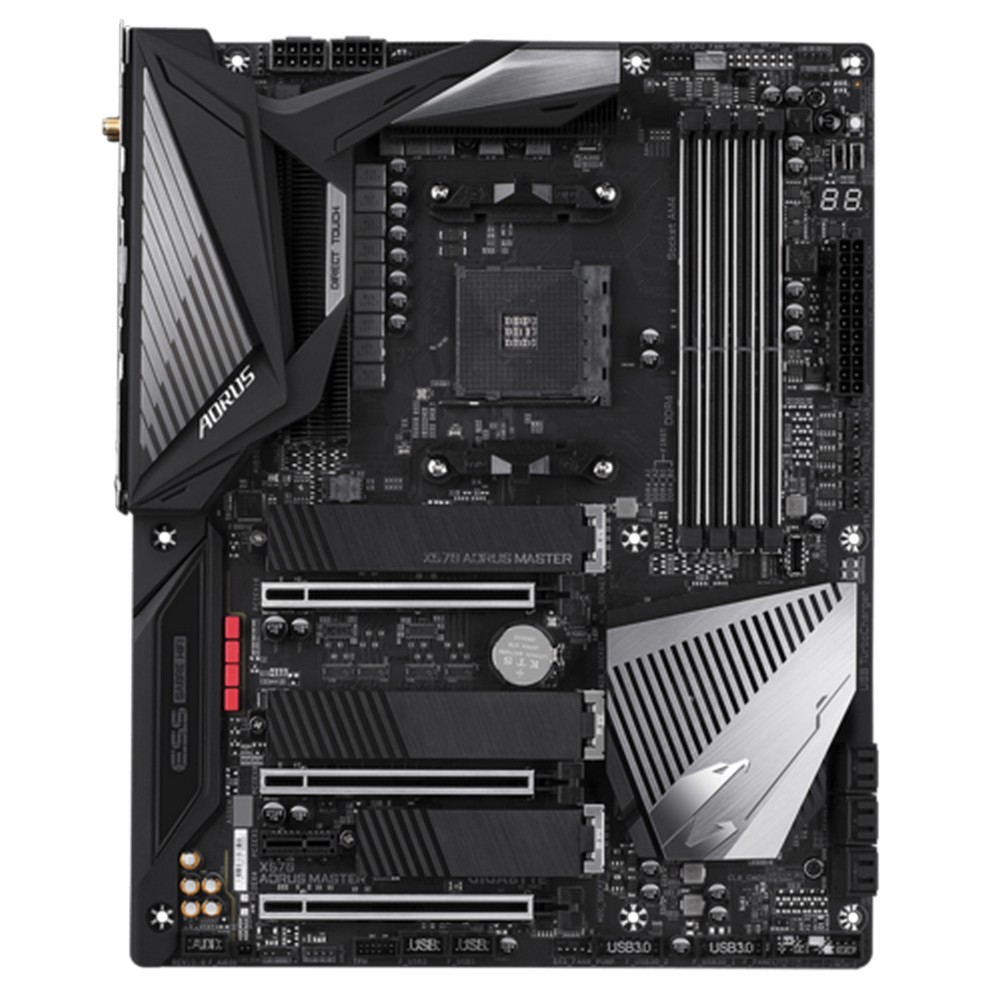

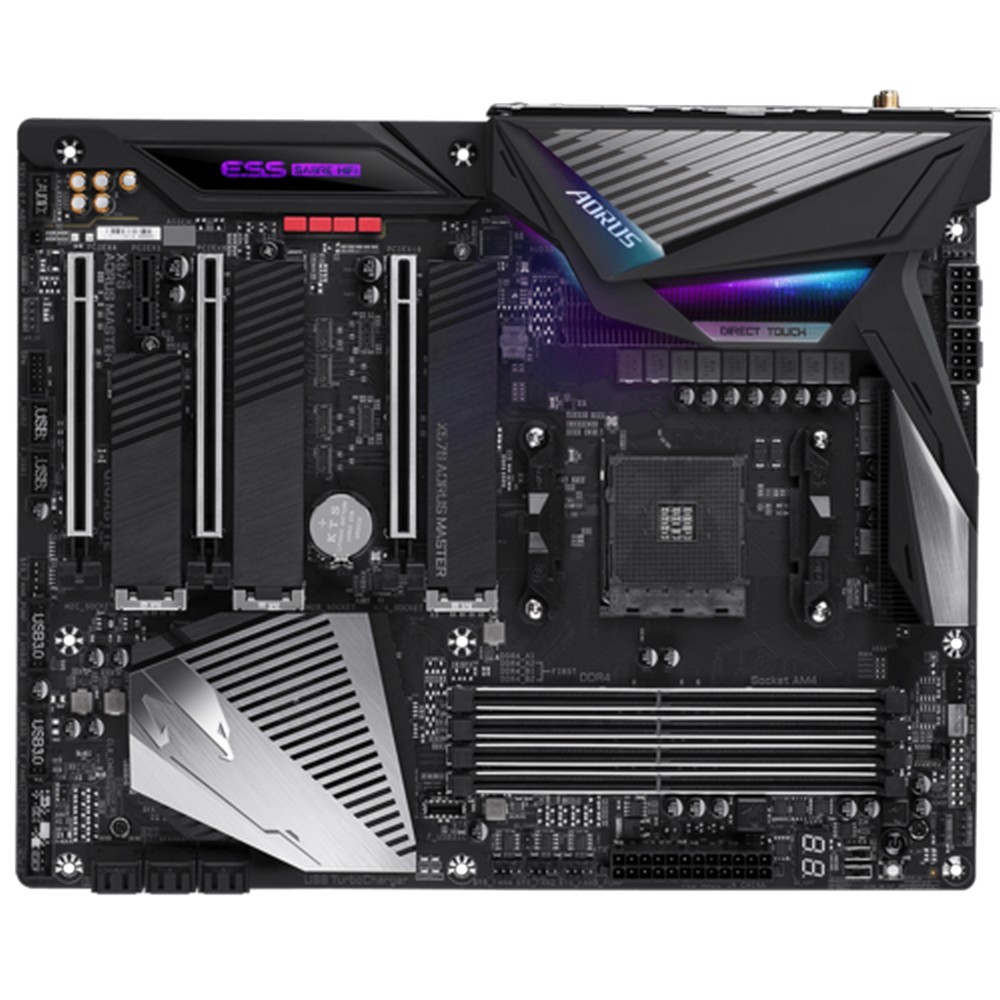

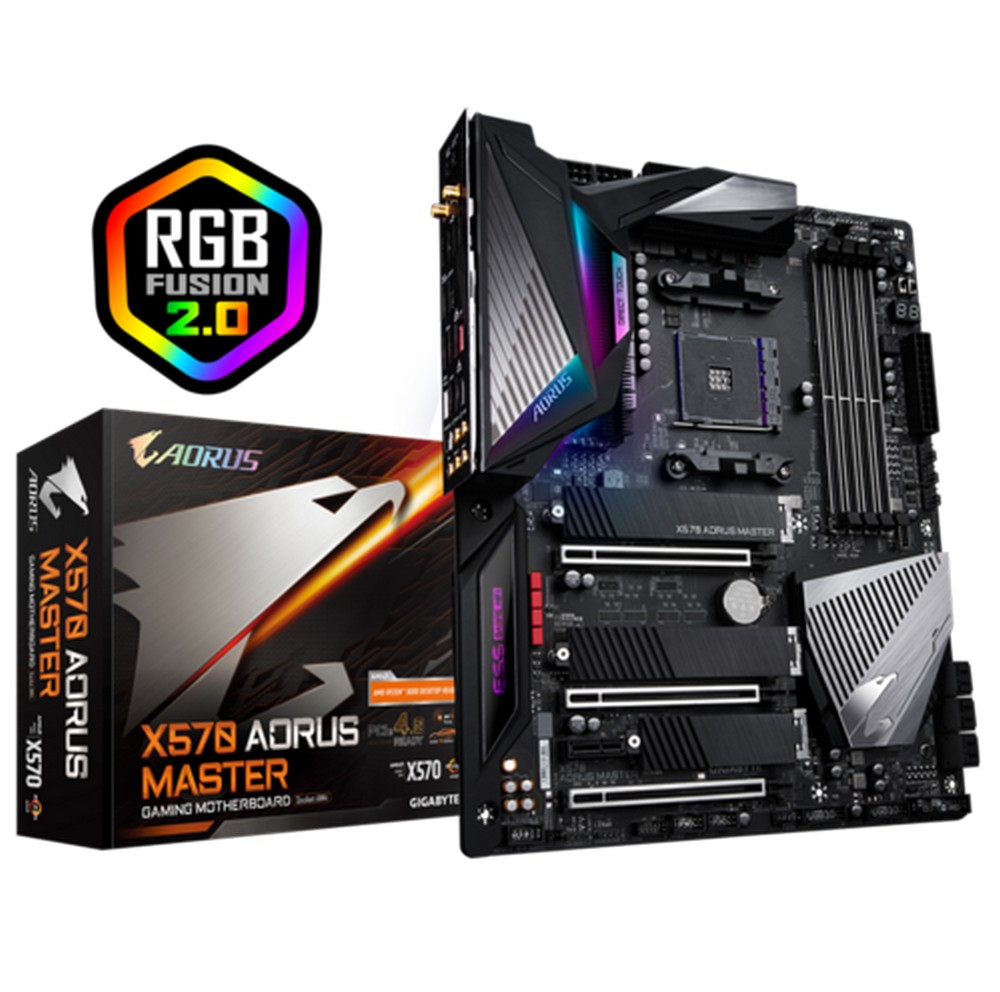

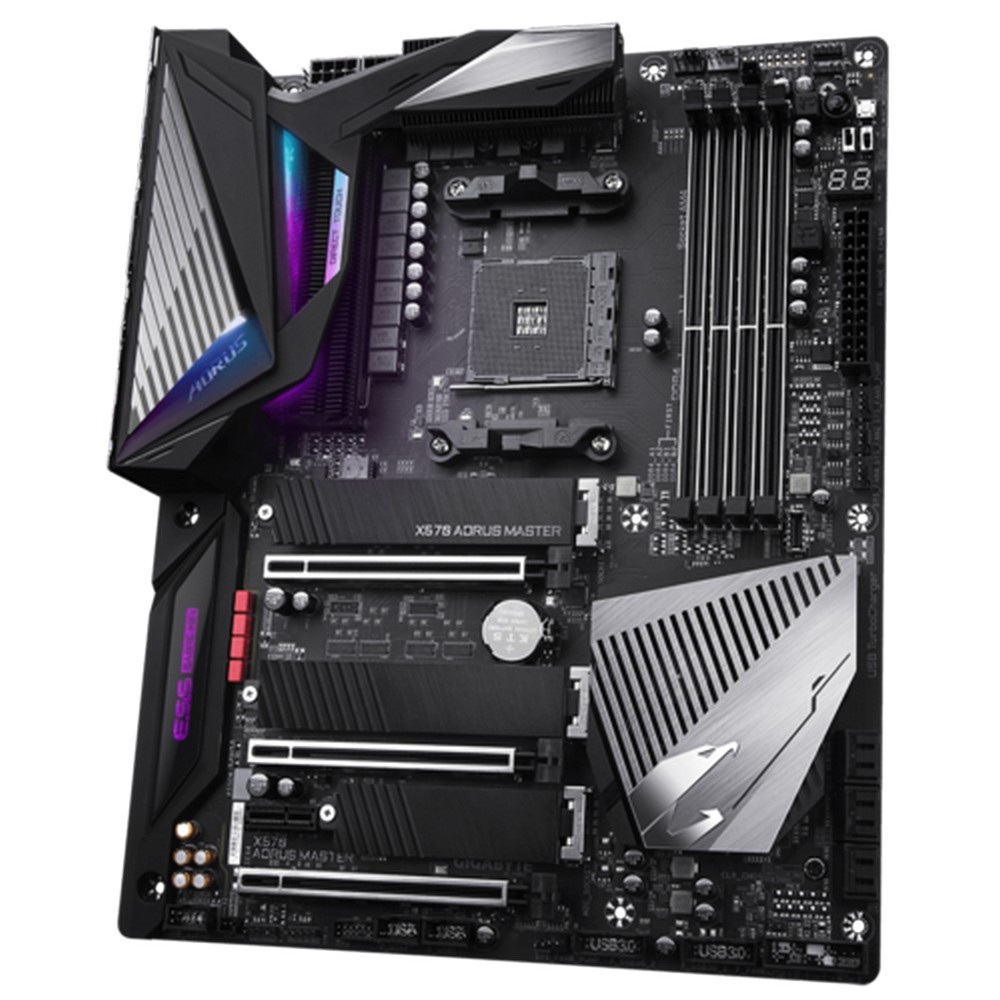

MB AM4 Gigabyte X570 AORUS MASTER 1.2 ATX

// CPU AMD Socket AM4, Supports AMD Ryzen™ 5000 Series / AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 3rd Gen Ryzen™ with Radeon™ Graphics/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics Processors Chipset AMD X570 Memory AMD Ryzen™ 5000 series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Audio Realtek® ALC1220-VB codec ESS SABRE9118 DAC chip LAN 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2) Wireless Communication module Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Expansion Slots · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 Storage Interface 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 USB 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
