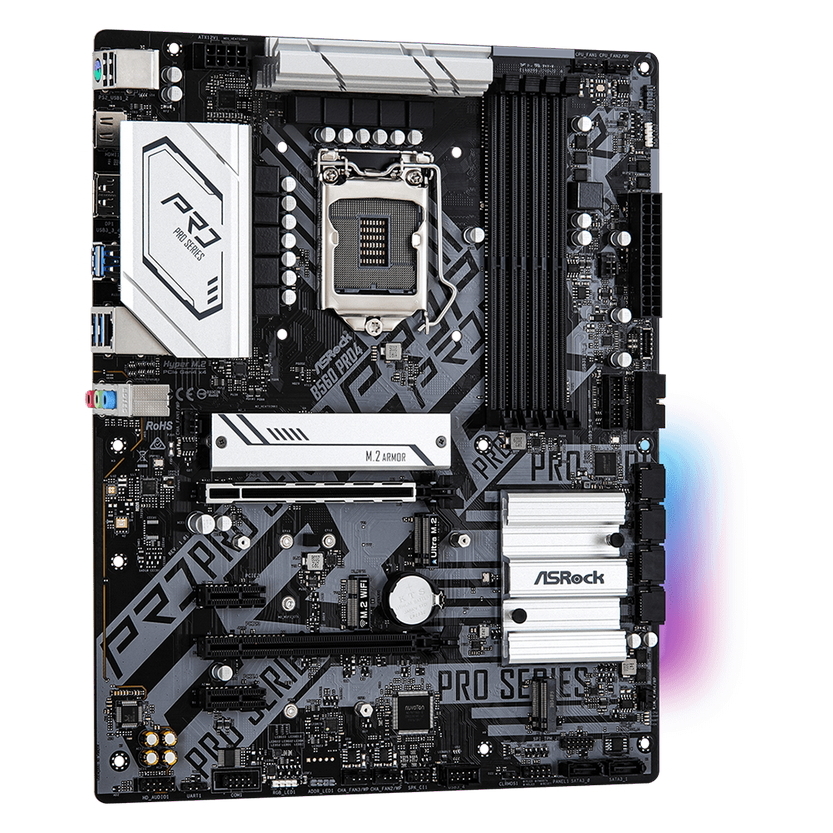

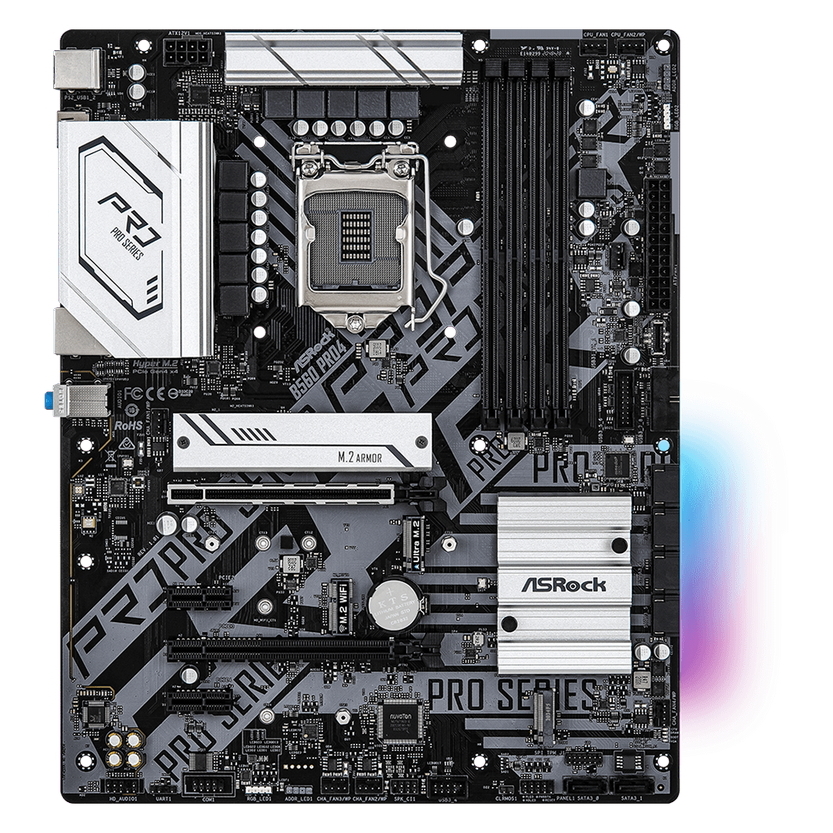

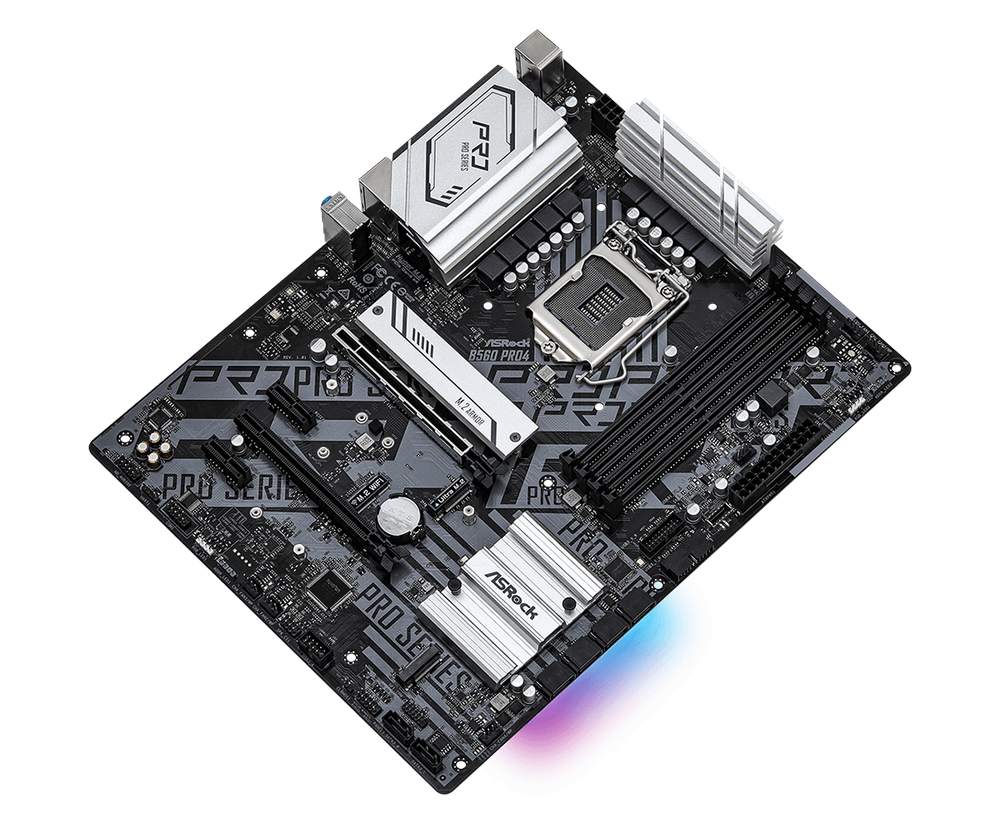

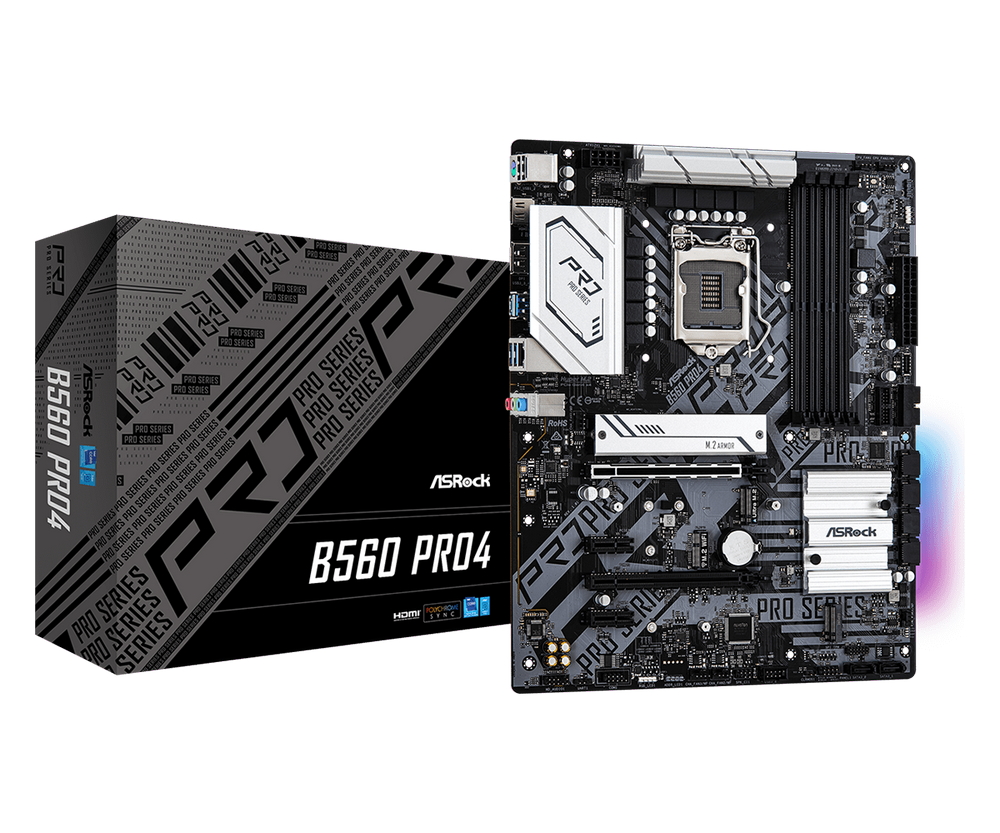

Placă de bază ASRock B560 PRO4, LGA1200, Intel B560, ATX

Name: Placă de bază ASRock B560 PRO4, LGA1200, Intel B560, ATX
Brand: ASRock
SKU: U127757
Price: 2359 MDL
Availability: BackOrder

Nu este în stoc · vă anunțăm când apare

2 359 lei

Ultimul preț listat, la următoarea suplinire de stoc prețul poate fi modificat.

Lăsați numărul — vă sunăm sau vă scriem când produsul revine în stoc sau când îl putem aduce și vă spunem prețul și termenul.

Alege un produs similar care îl avem în stoc 84 de produse în stoc · Mainboards

Caracteristici

USB Type-C: --
Bluetooth Compliance: --
HDMI: 1 x HDMI 2.0
DVI: --
DisplayPort: 1x DP 1.4
Audio Jacks: HD Audio Jacks: Line in / Front Speaker / Microphone
PC Component Type: Placă de bază
Motherboard Form-Factor: ATX
USB 3.x Type-A: 4x USB 3.2
USB 2.0 Type-A: 2x
Memory Type: DDR4 SDRAM
Memory Speed: 2133 MHz
Memory Slots QTY: 4x DIMM
Total RAM Maximum Size: 128 GB
Wi-Fi Controller: --
Thunderbolt: --
Chipset: Intel B560
CPU Support: Intel Core Gen 11th/10th & Celeron/Pentium
Audio Chipset: 7.1 Ch HD Audio, Realtek ALC897
SATA Ports: 6x SATA 6Gb/s
SPDIF Out: --
Socket: LGA1200
Ethernet (LAN) controller #1: Gigabit Ethernet (Intel I219V)
Ethernet (LAN) controller #2: --
Slot support M2 #1: M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2: M2: PCIe Gen3 x4 (32 Gb/s)
Slot support M2 #3: M2: SATA3 & PCIe Gen3 x2 (16 Gb/s)
Slot support M2 #4: --
USB 2.0 Headers: 1x USB 2.0 (Support 2 USB Ports)
USB 3.x Headers: 2 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)

Disponibilitatea, dimensiunile și specificațiile pot varia de cele reale. Vă recomandăm să verificați detaliile exacte înainte de achiziționare.

Descriere

// CPU - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) Chipset - Intel® B560 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* - Max. capacity of system memory: 128GB** Graphics Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V Slots 11th Gen Intel® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))* - 2 x PCI Express 3.0 x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) Storage - 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** USB - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
