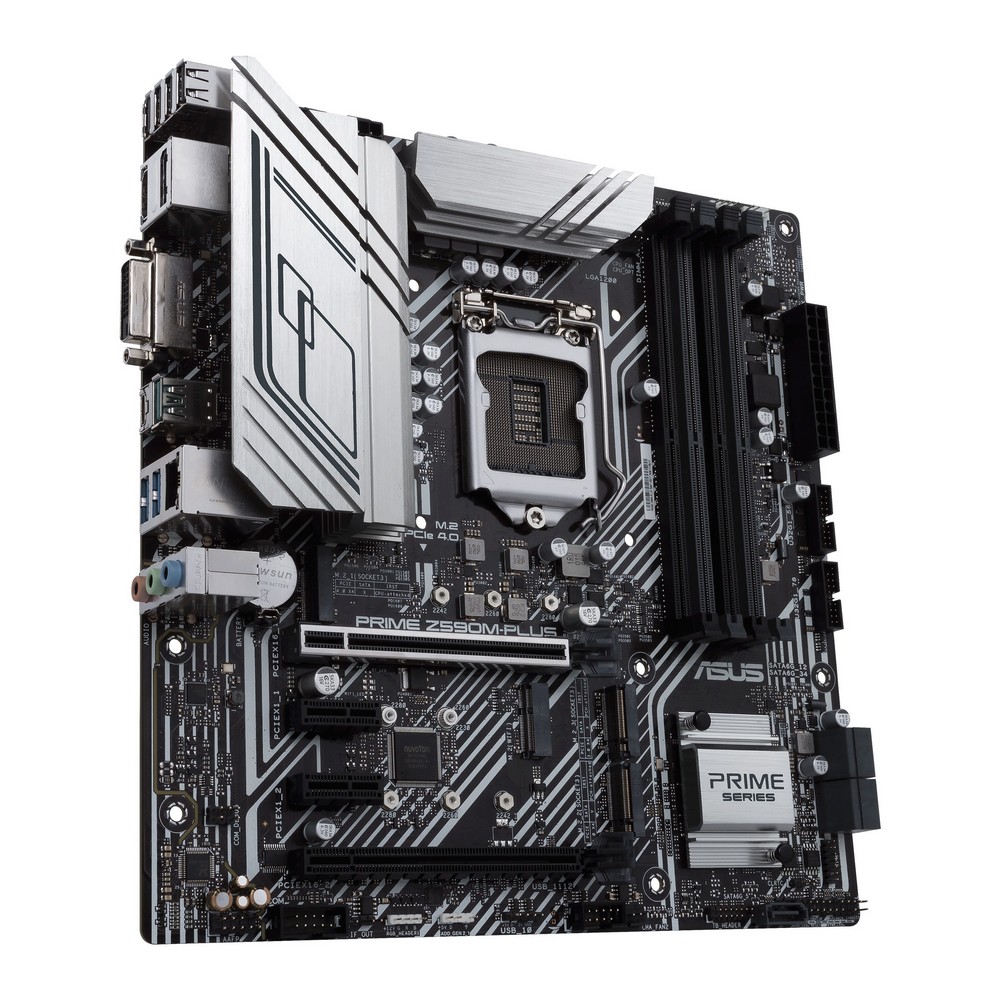

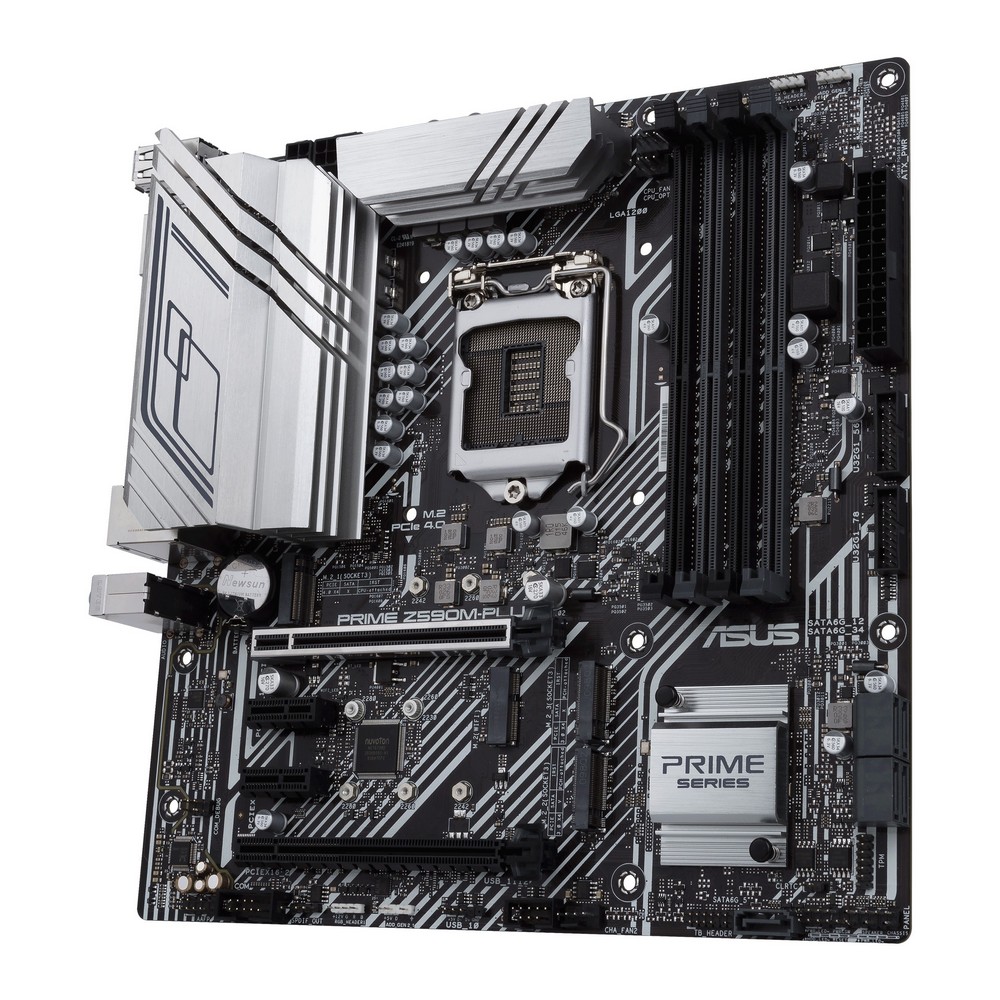

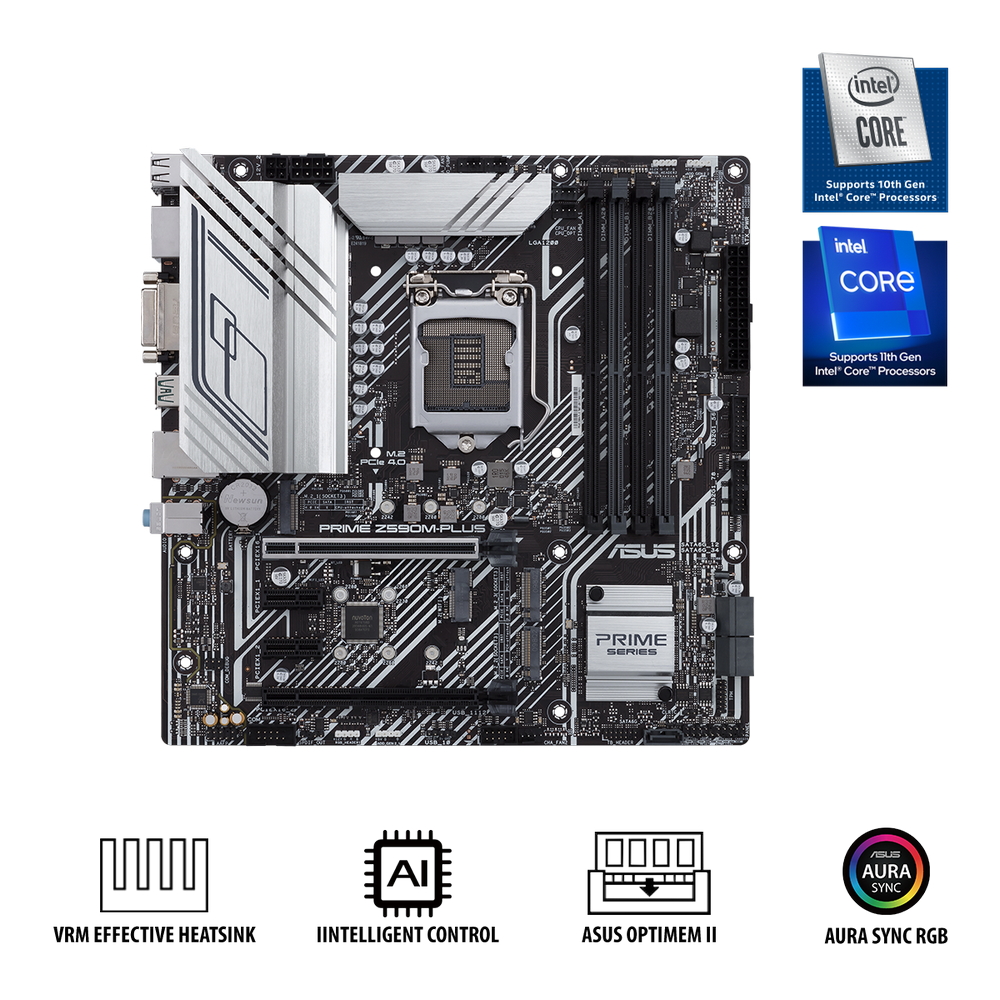

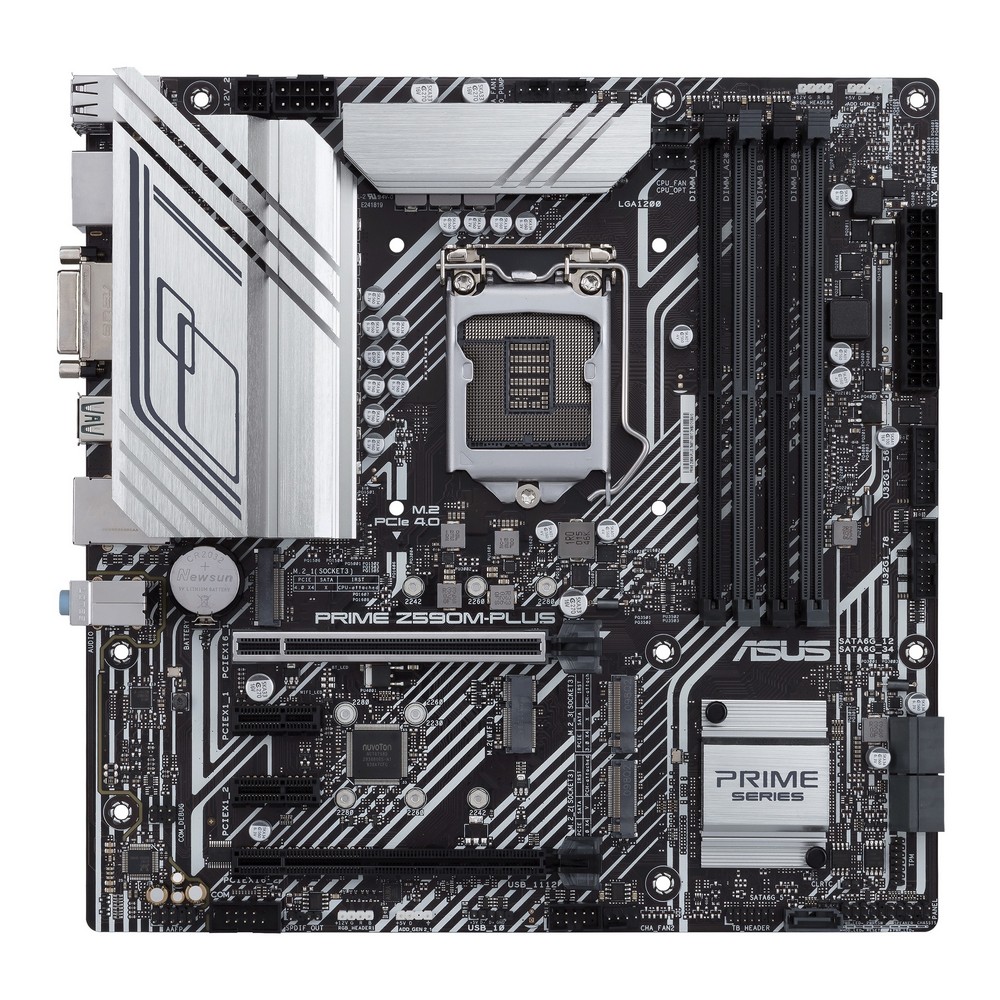

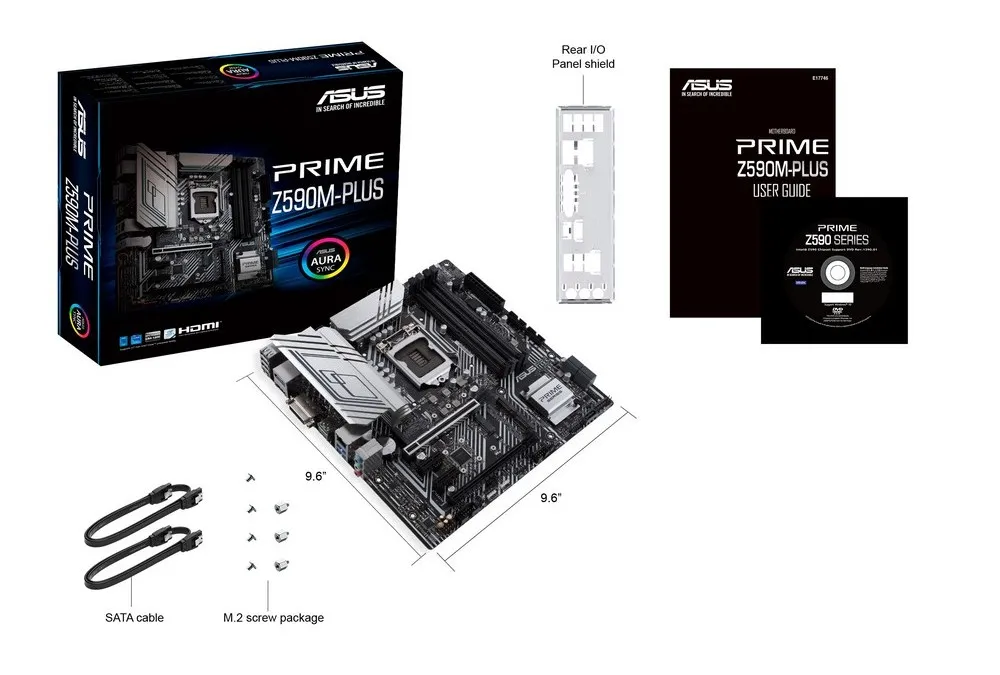

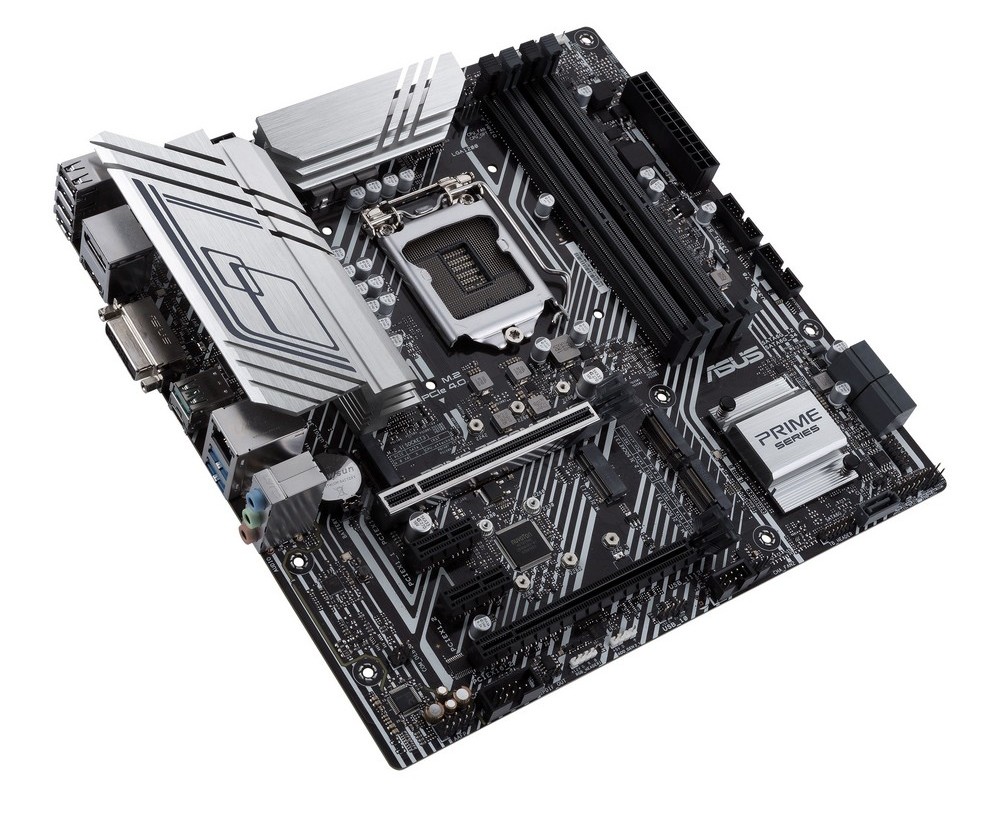

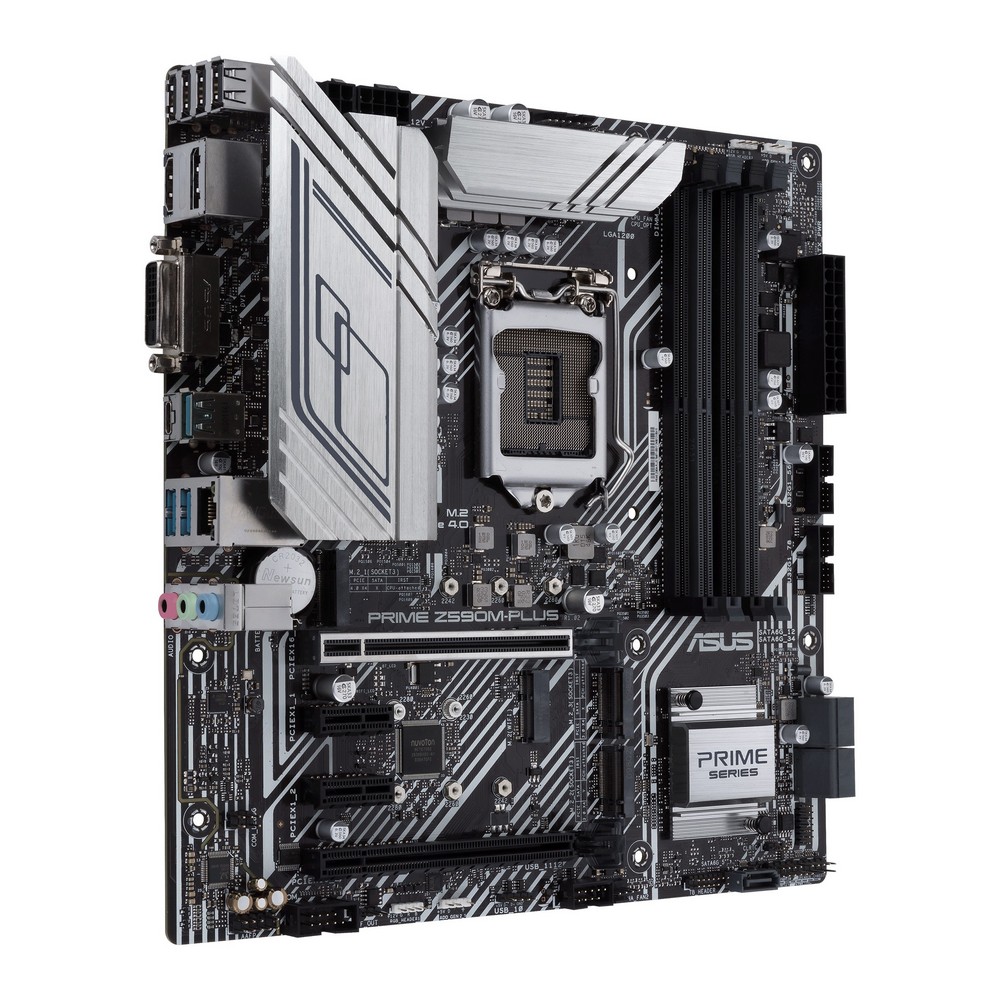

Placă de bază ASUS PRIME Z590M-PLUS, LGA1200, Intel Z590, Micro-ATX

// CPU - Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Chipset - Intel® Z590 Memory 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x DisplayPort 1.4** 1 x DVI-D 1 x HDMI™ 1.4 / 2.0*** Expansion Slots 1 x PCIe 4.0/3.0 x16 slot 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Storage Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280 (Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 5 x SATA 6Gb/s ports Support Raid 0, 1, 5, 10 LAN 1 x Intel® I219-V 1Gb Ethernet Wireless Data Network M.2 slot only (Key E) (Support CNVI & PCIe interface)* *Wi-Fi module is sold separately. Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* USB Ports Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
