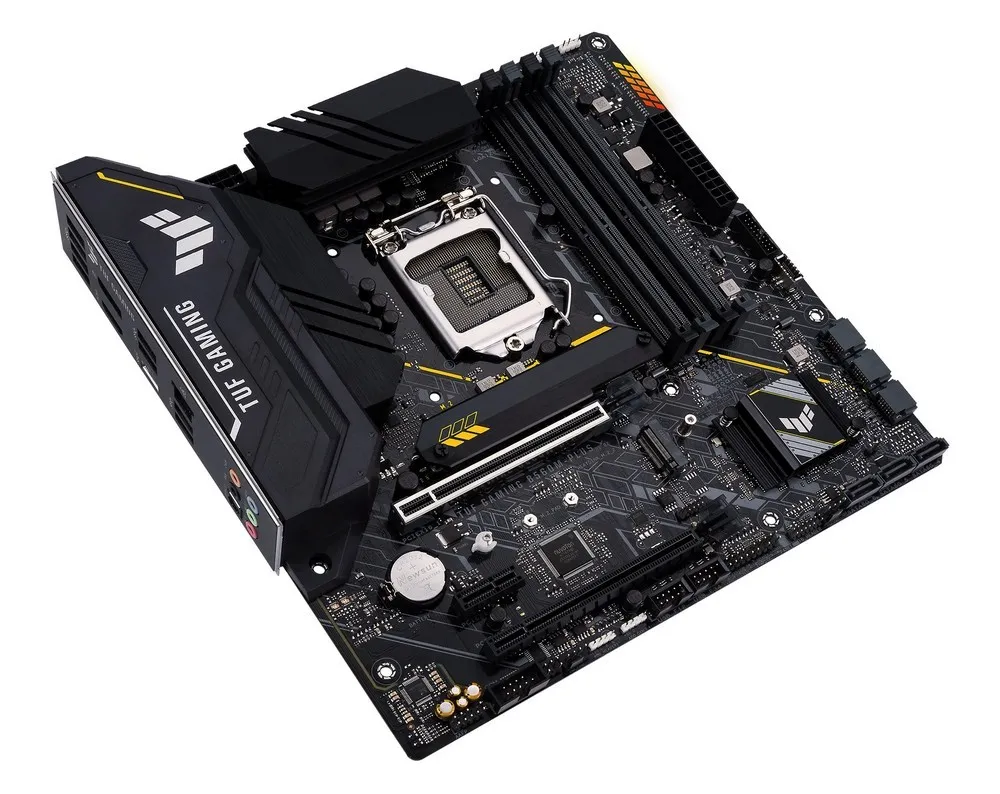

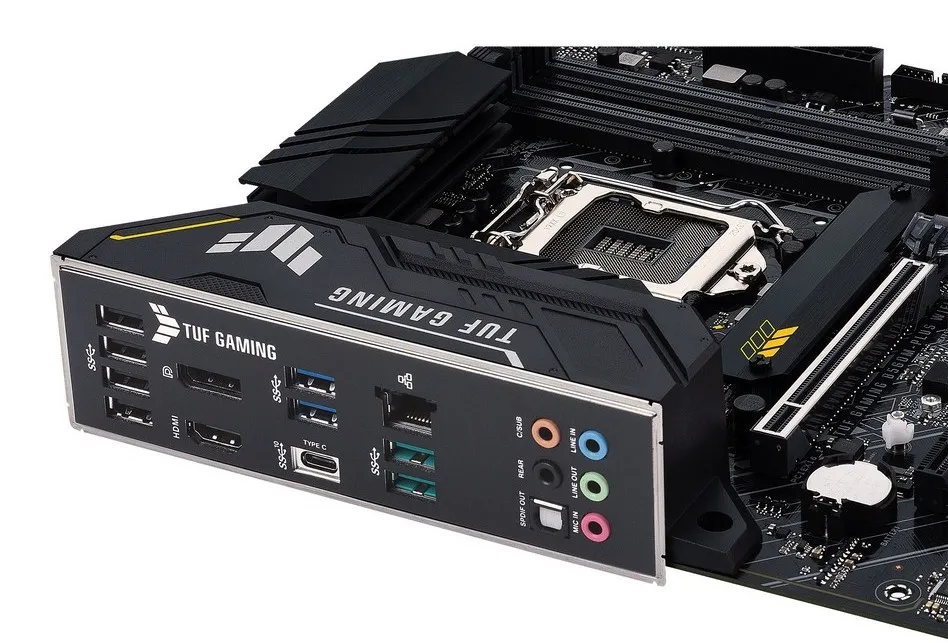

Placă de bază ASUS TUF GAMING B560M-PLUS, LGA1200, Intel B560, Micro-ATX

// CPU - Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Chipset - Intel® B560 Memory 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x DisplayPort 1.4** 1 x HDMI™ 2.0** Expansion Slots 1 x PCIe 4.0/3.0 x16 slot(s)* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Support Raid 0, 1, 5, 10 LAN 1 x Intel® 2.5Gb Ethernet Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* USB Ports Rear USB:Total 9 ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
