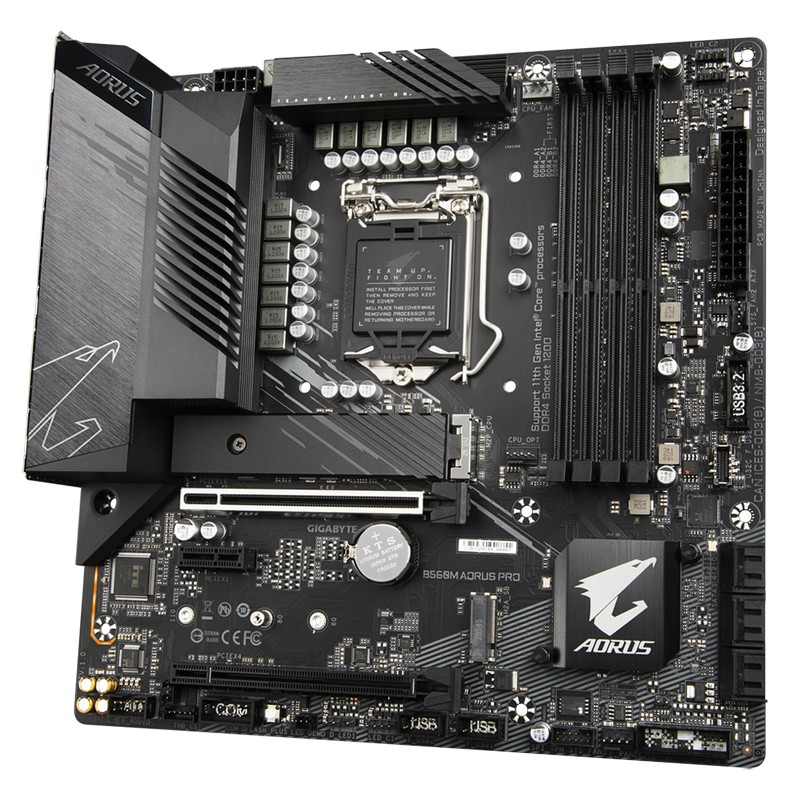

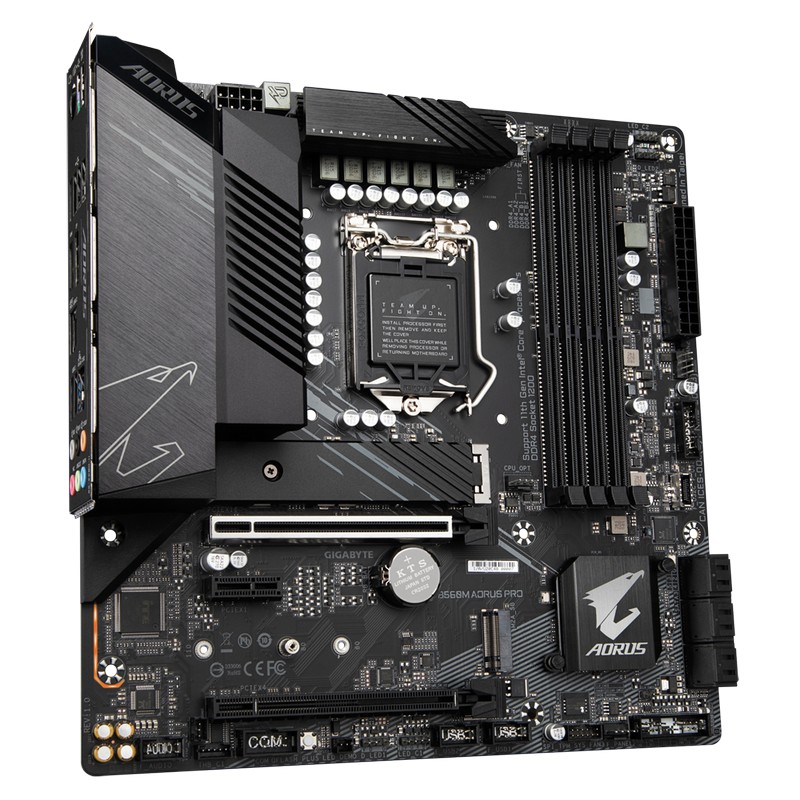

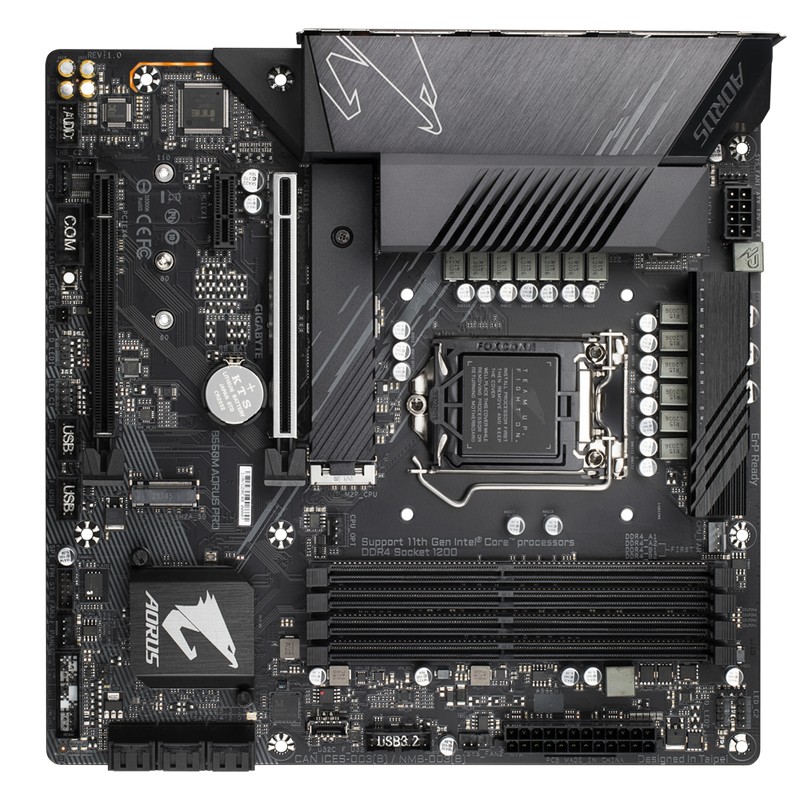

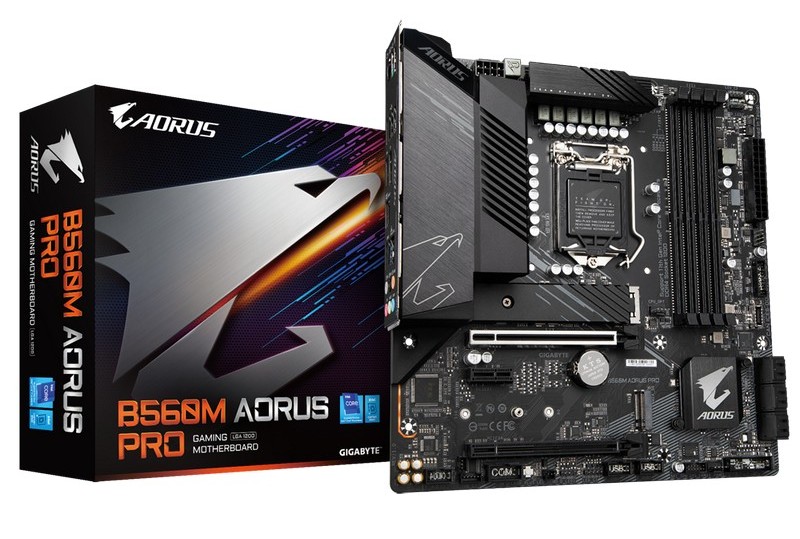

Placă de bază Gigabyte B560M AORUS PRO, LGA1200, Intel B560, Micro-ATX

// CPU 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* Chipset Intel® B560 Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Audio Realtek® Audio CODEC LAN Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot Storage Interface 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
